Form Actions
Learn about form actions in the Human Interaction app and how they create forms with optional data mappings for dynamic content. Discover how form actions generate unique form URLs and can be shared via email. Explore the "await form submission" action th
Form actions are where the form is created as an action, which can optionally include data-mapped values to populate the form design with dynamic content. The output from a form action is the unique URL to the form, which is then typically sent to someone via email or some other mechanism. An "await form submission" action pauses the automation and awaits the form submission. When the form is submitted, the automation wakes up, the "await form submission" action emits the submitted form field values, and the automation continues its processing.

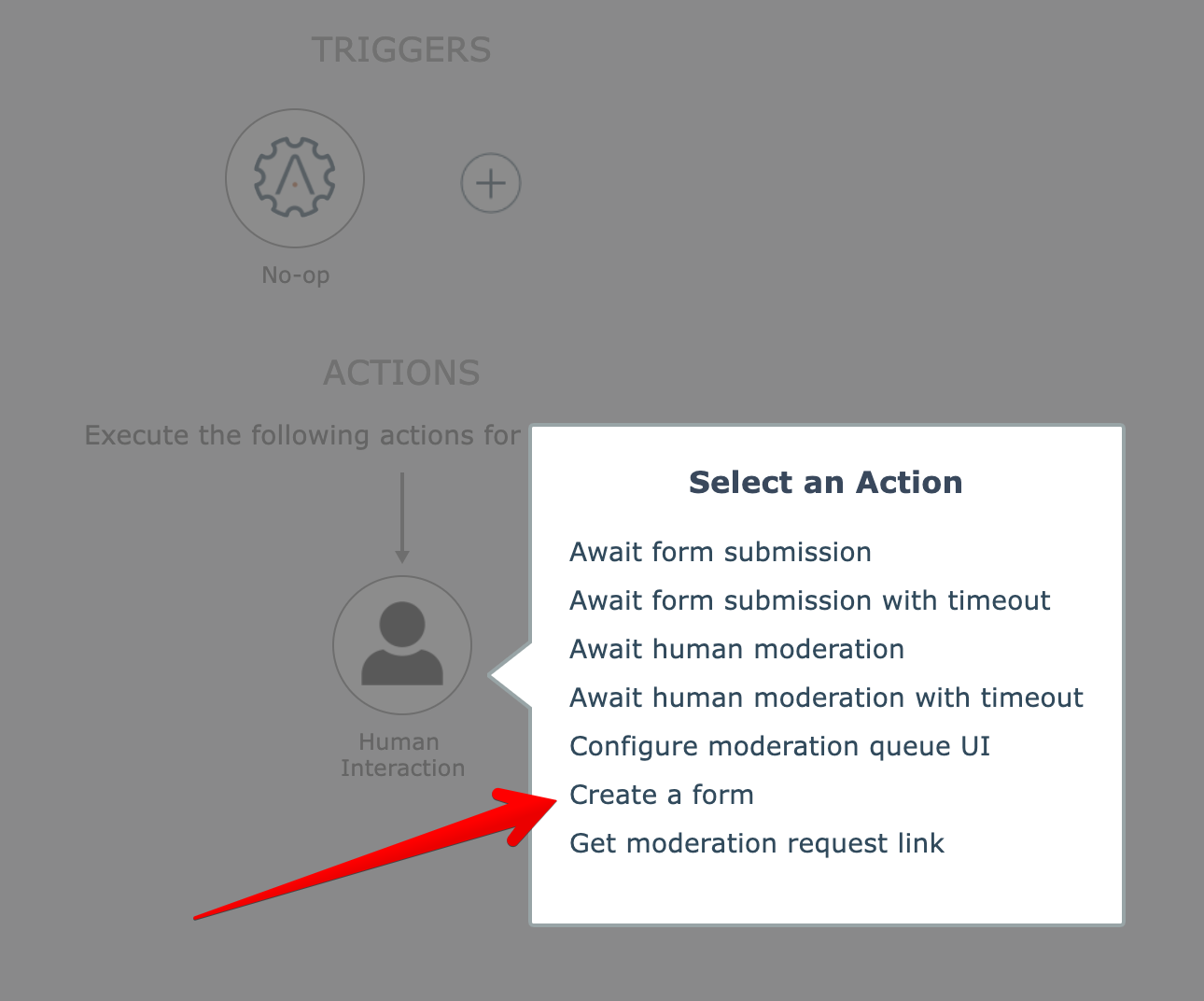

The "create a form" action is found under System Utilities within the Human Interaction app:

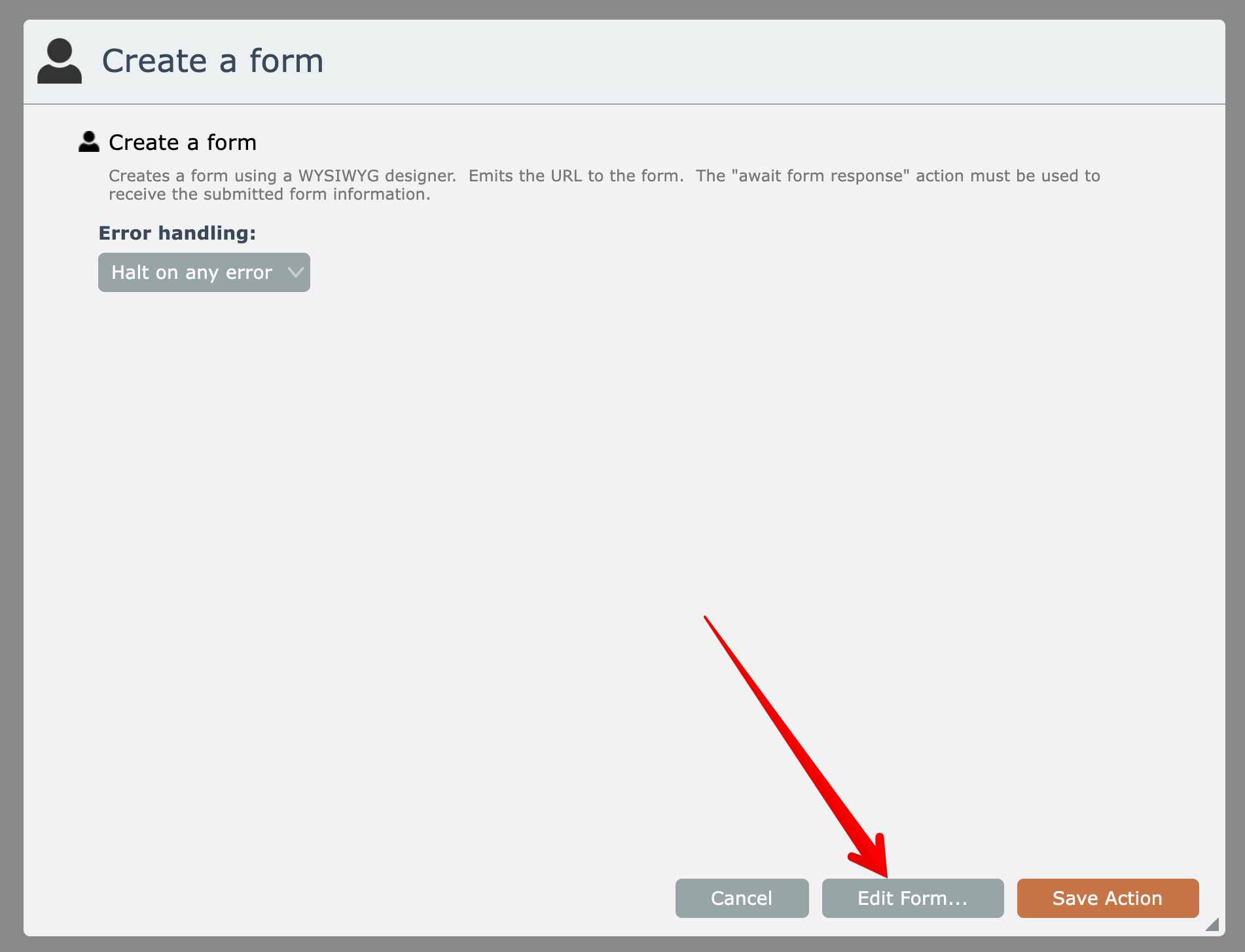

Click the Edit button to open the form designer:
The drag-drop form designer lets you design your form and preview it.

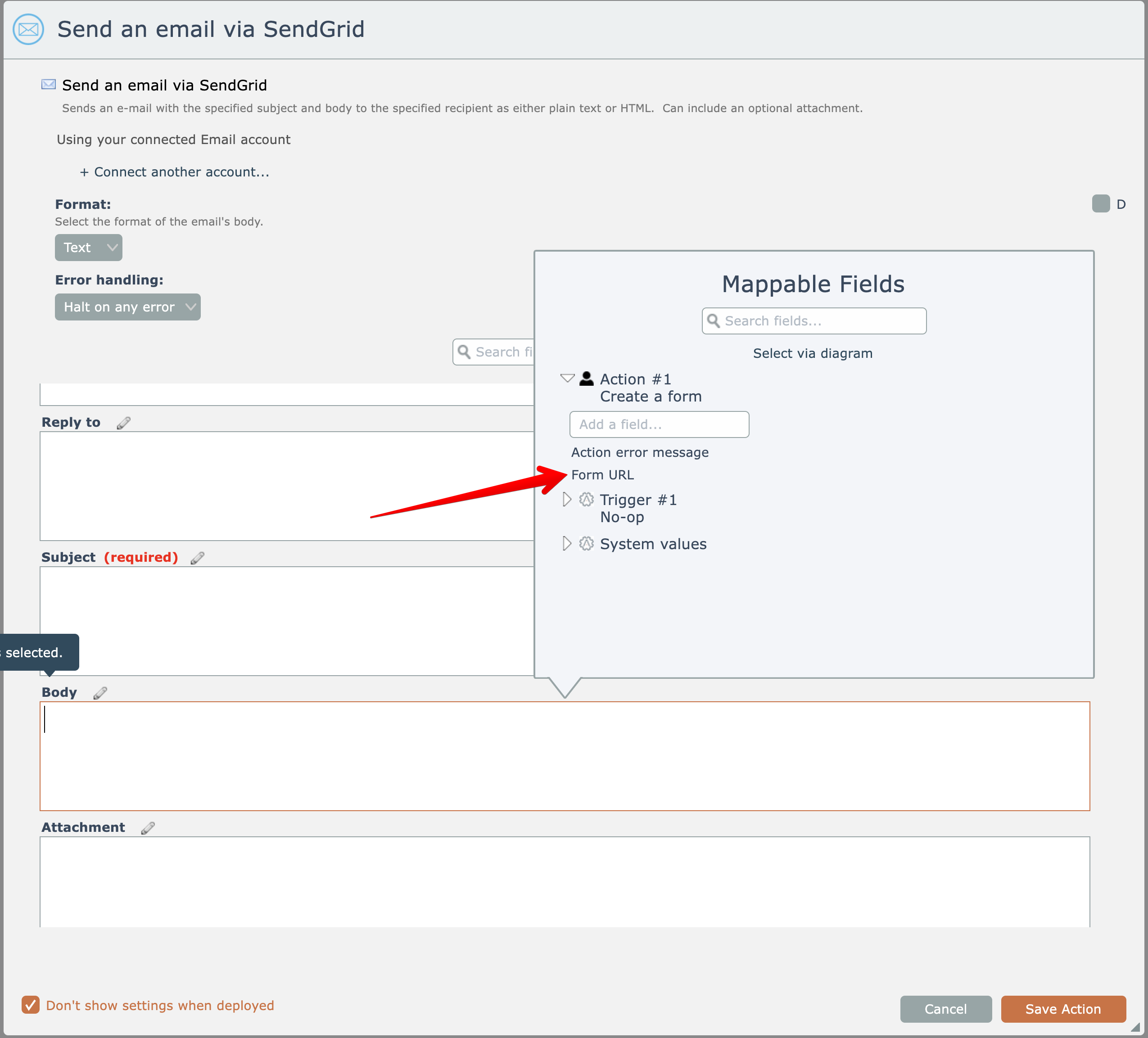

The "create a form" action emits the URL to the form, which is typically sent to someone via another action like email:

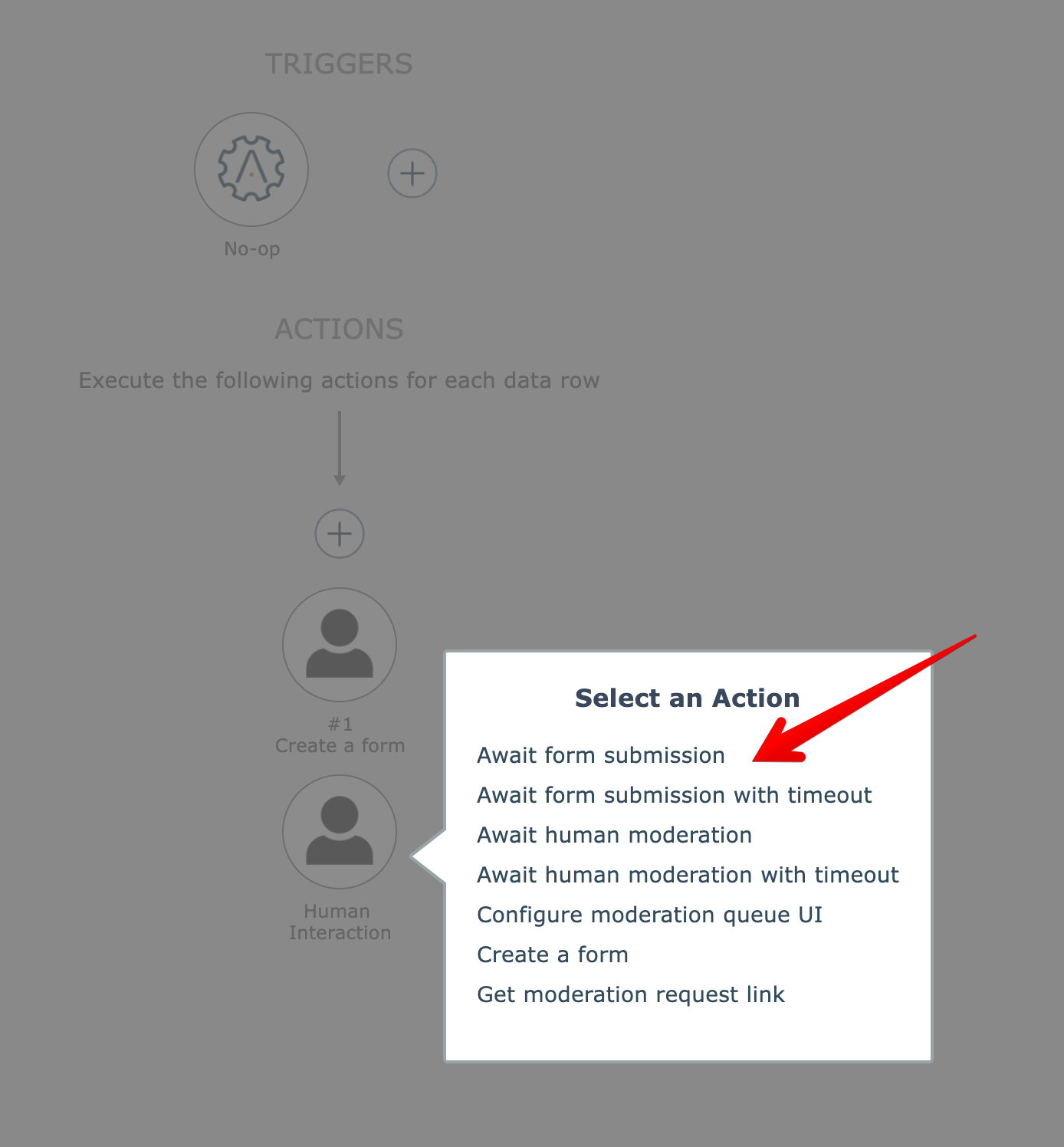

The Human Interaction app under System Utilities includes "await form submission" actions that pause the automation until the form is submitted:
The "await form submission with timeout" action is a variation that will emit an empty form response if no submission is received within the specified amount of time.
The "await form submission" action is automatically associated to the closest preceding "create a form" action. It is ok to place other actions in between the "create a form" action and the "await form submission" action (and generally it is required in order to send the form URL to someone), but generally you want to keep these two actions close to each other so it is readily apparent that these two actions are associated with each other.

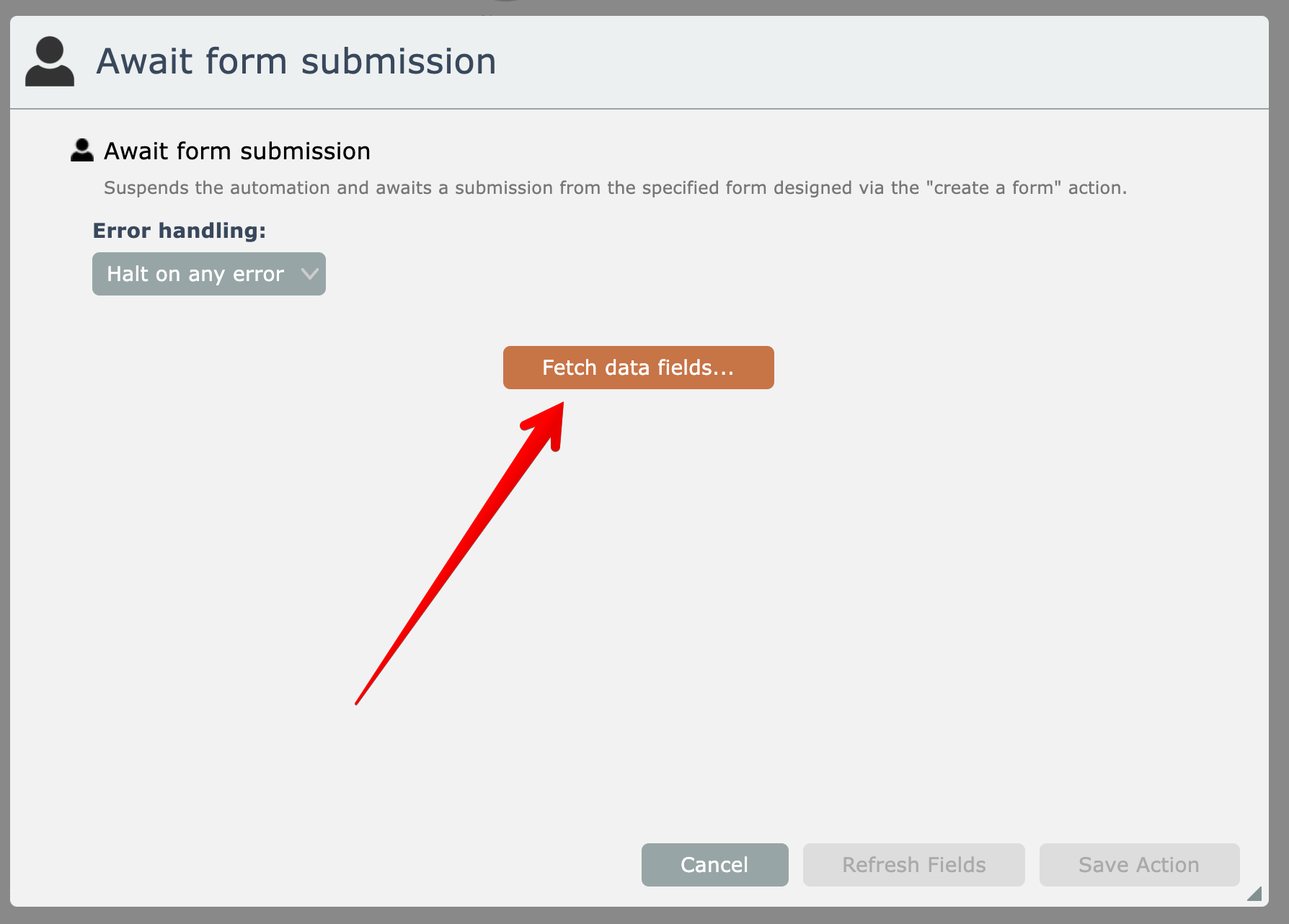

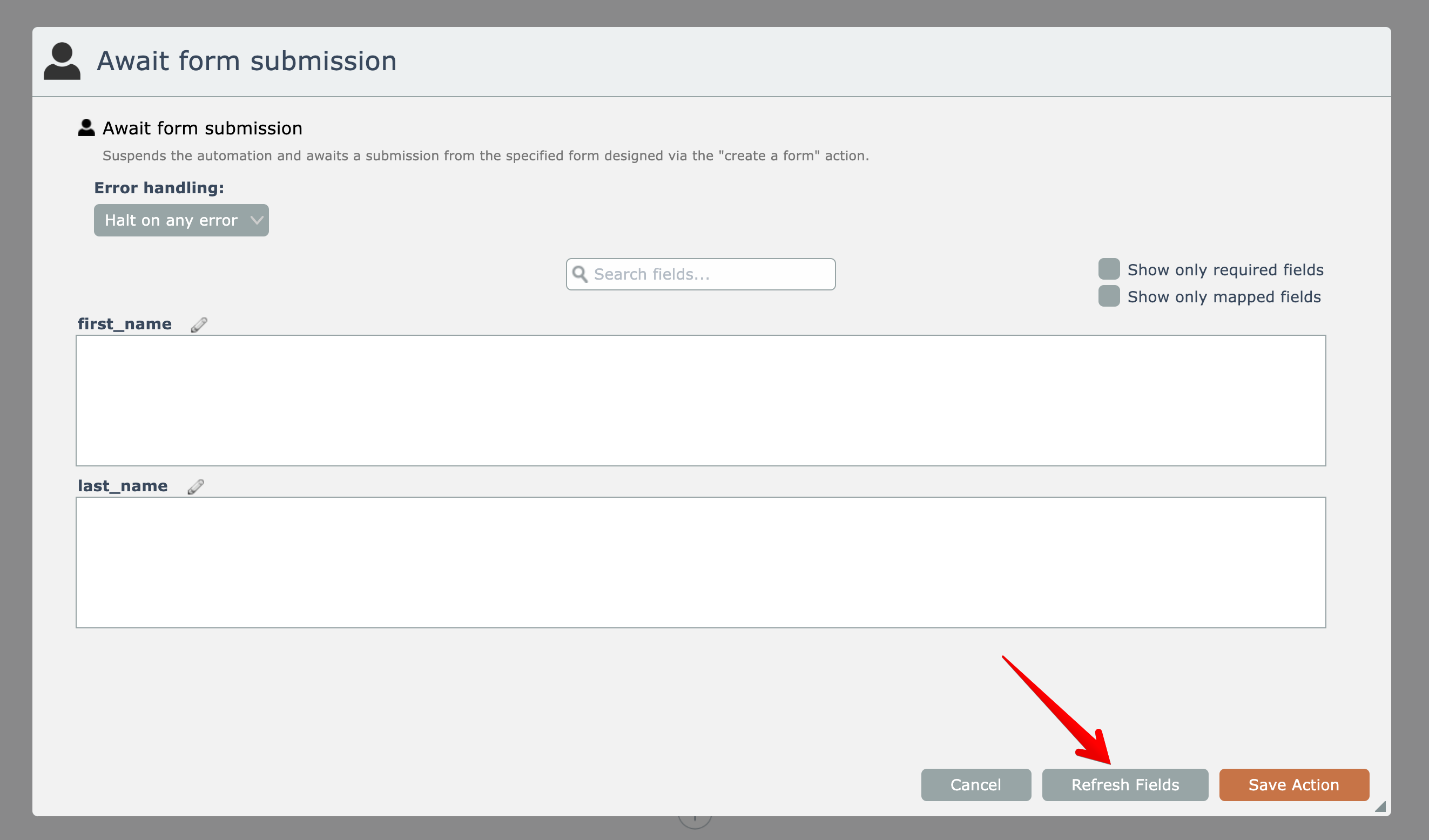

After adding the "await form submission" action, the form's fields must first be fetched:
Dynamic Inputs

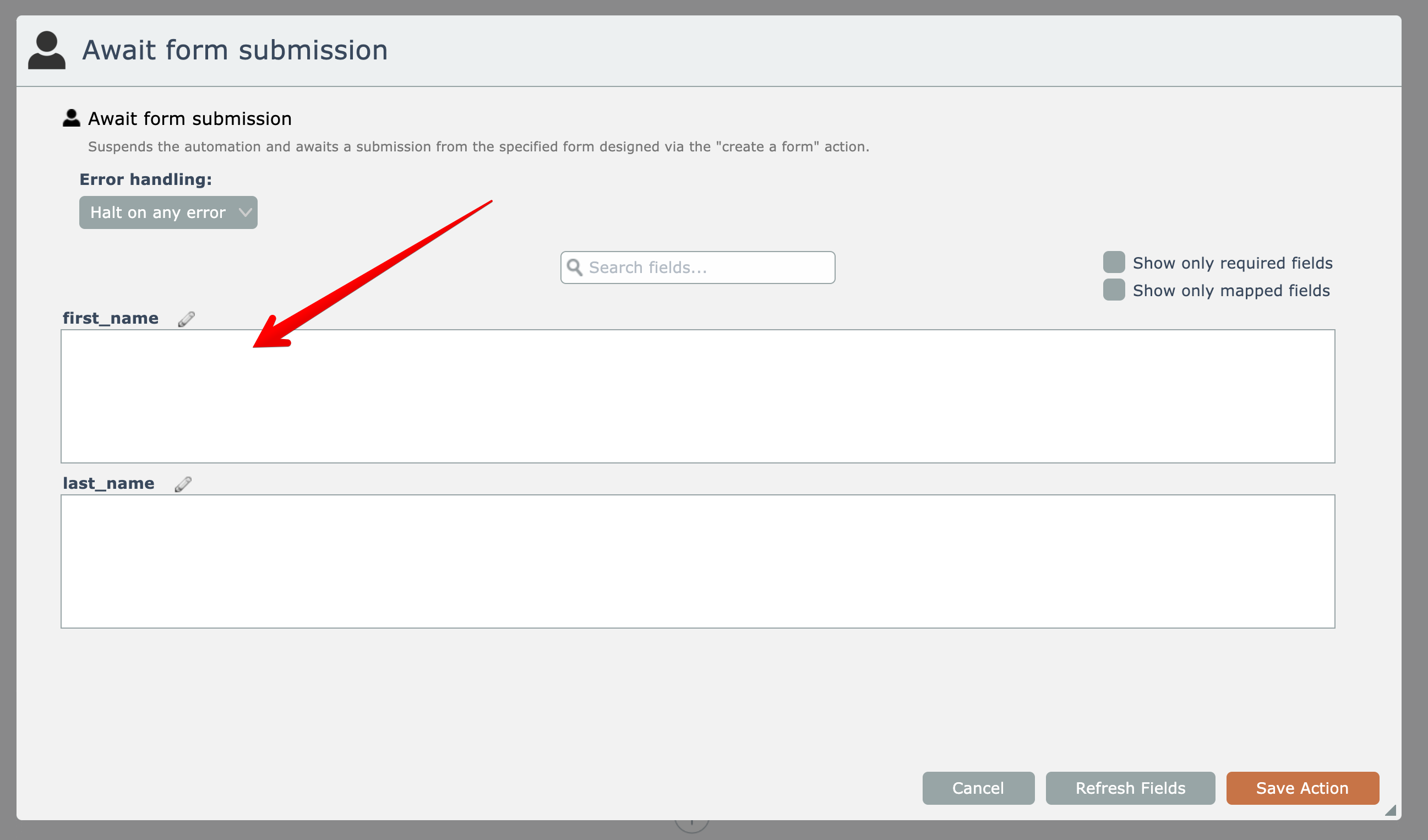

The form's data fields can optionally be pre-populated with information, including dynamic data-mapped values:

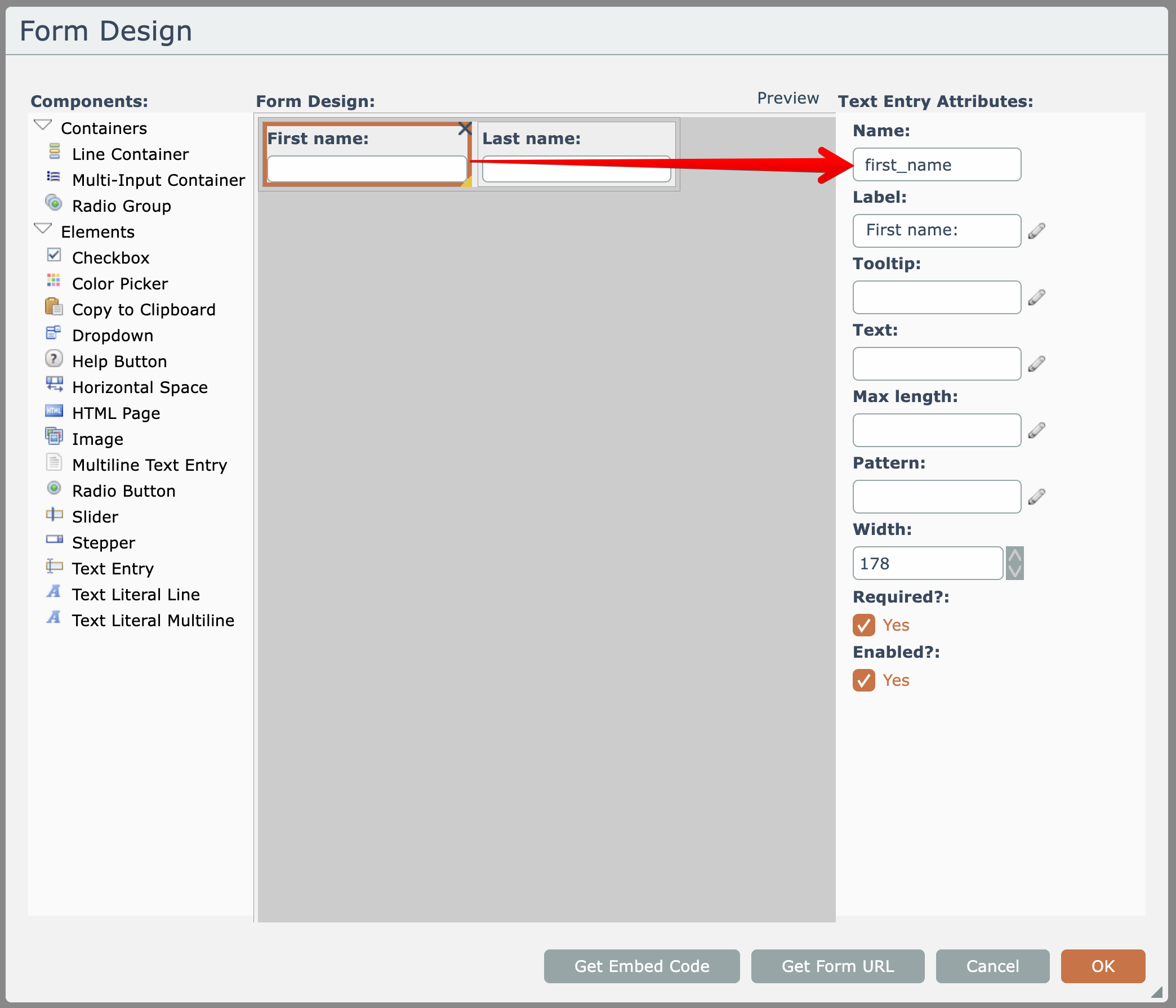

The input field names come from the UI elements within the form. For example, in the previous example the "first_name" field comes from this text entry field's name in the design:
If no input values are entered for the form's fields, then the default values in the form's design will be used when the form is opened.
To send array data into a form for display, see Array Data.

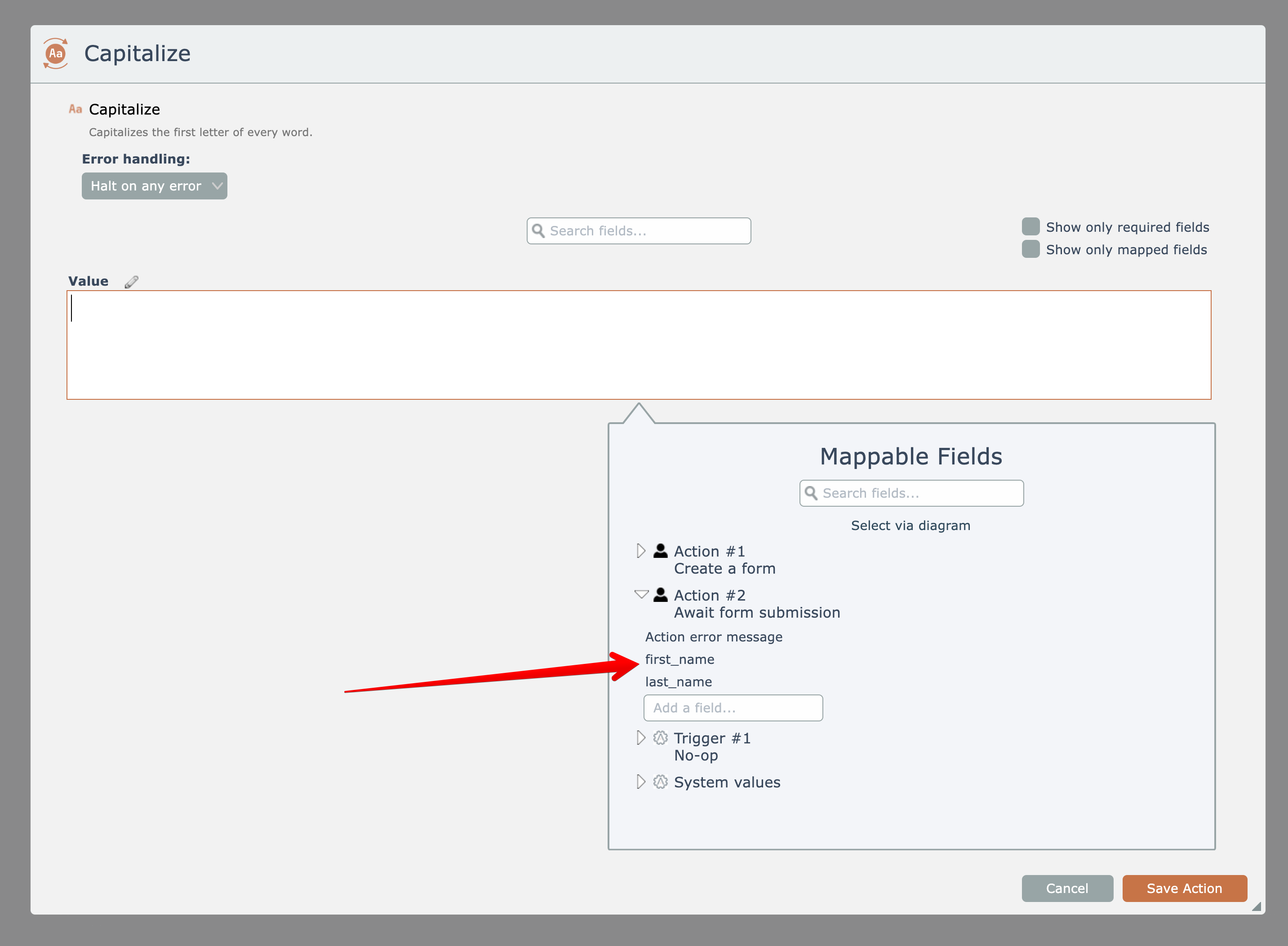

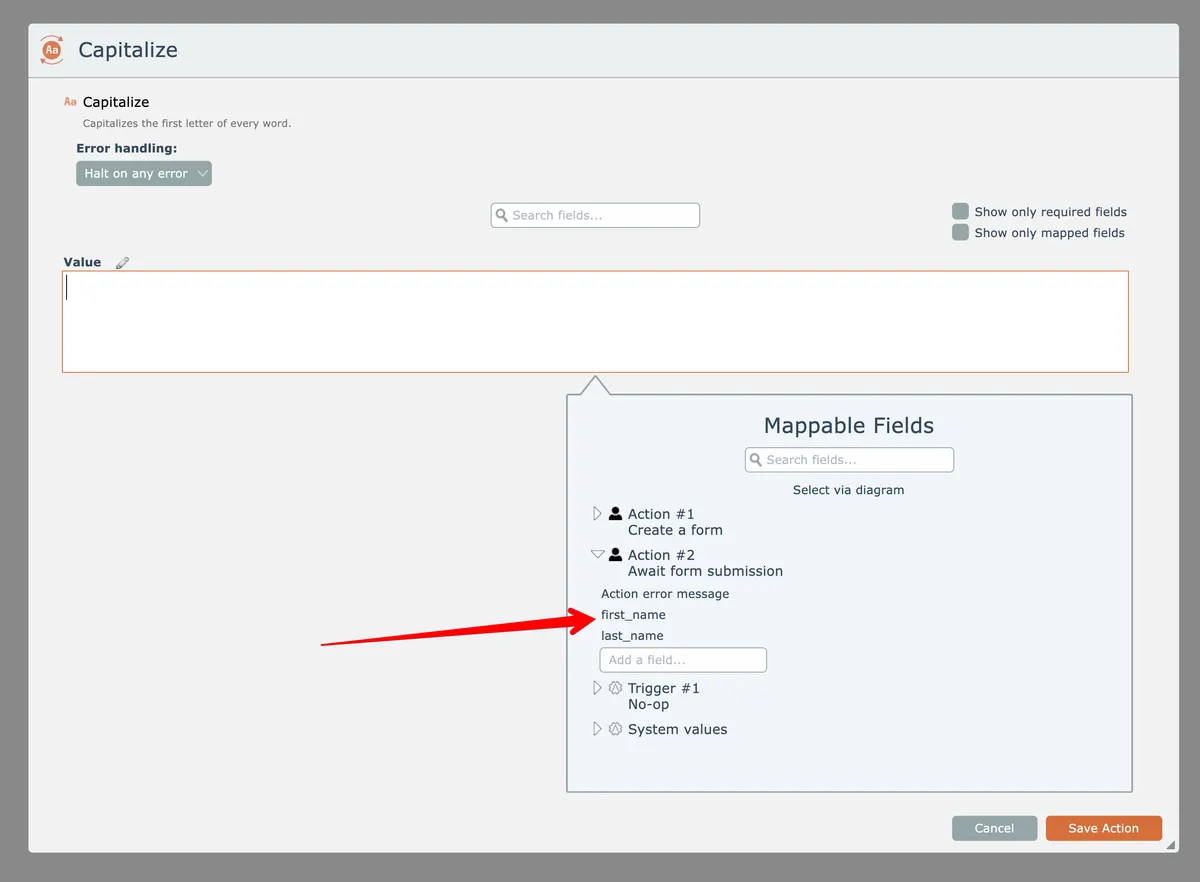

When the form is submitted, the automation wakes up and the "await form submission" action will emit the form field values, which can be mapped to other actions:

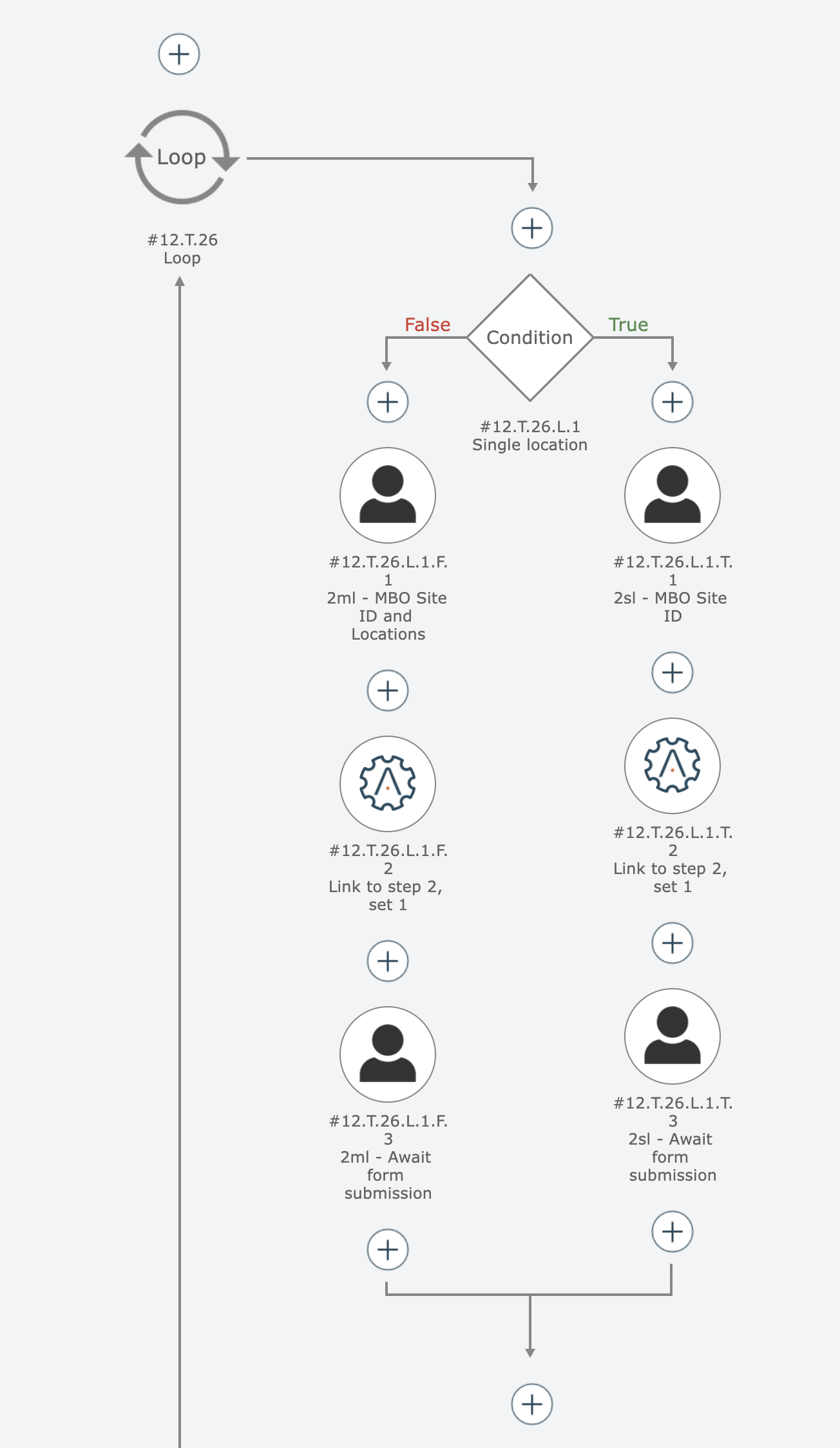

An automation may contain multiple forms, allowing complex workflows to be created where different forms with varying dynamic content are generated based upon previously received form submissions:
